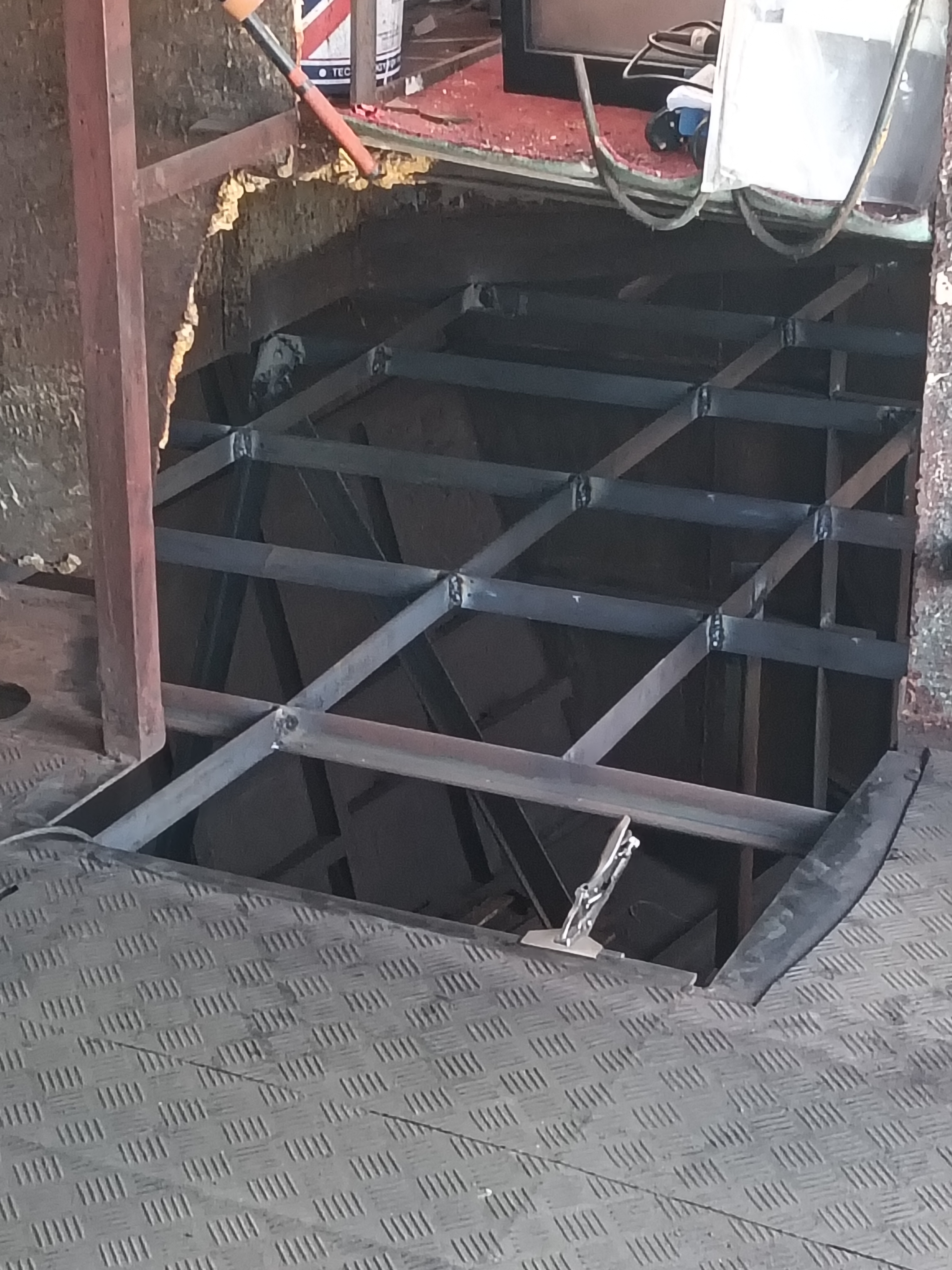

Boat Building Techniques. Boat building is a blend of engineering, craftsmanship, and experience. This article focuses on marine electrical system design, an area that directly affects reliability, safety, and usability. Unlike domestic systems, boat electrics operate in a harsh environment where poor planning quickly leads to faults.
A well-designed 12V system is not simply a collection of components, but a structured network that distributes power efficiently and safely. Early decisions in layout and load planning have a lasting impact on performance and maintenance.
Fundamentals of Marine Electrical Systems
Most small to medium vessels rely on 12V DC systems for primary electrical supply. These systems power navigation equipment, lighting, pumps, and auxiliary systems.
Core components include:
- Battery banks (domestic and engine start)
- Distribution panels and circuit protection
- Charging systems (alternator, shore power, solar)
- Wiring and connectors
The effectiveness of the system depends on how these components are integrated.
Load Assessment and Planning
Design begins with understanding electrical demand. Each device must be accounted for to ensure adequate capacity.
Typical loads:
- Lighting circuits
- Navigation electronics
- Bilge and freshwater pumps
- Refrigeration systems
Basic load calculation:
| Device | Current (A) | Hours/Day | Daily Use (Ah) |
| Cabin lights | 3 | 4 | 12 |
| Fridge | 5 | 8 | 40 |
| Instruments | 2 | 6 | 12 |
This approach provides a realistic basis for battery sizing and charging requirements.
System Layout and Distribution
Electrical layout should prioritise clarity, accessibility, and protection.
Key principles:
- Centralised distribution panel for control and protection
- Short cable runs where possible to reduce voltage drop
- Logical grouping of circuits
In practice, poorly planned layouts often result in complex fault-finding and unnecessary voltage losses.
Voltage Drop Considerations
Voltage drop is a critical factor in 12V systems. Even small losses can affect equipment performance.
Causes include:
- Undersized cables
- Excessive cable length
- Poor connections
Maintaining voltage drop within acceptable limits (typically under 3–5%) is essential for reliable operation.
Cable Selection
Choosing the correct cable size is fundamental to system performance.
Factors to consider:
- Current load
- Cable length
- Acceptable voltage drop
Tinned copper marine cable is generally preferred due to its resistance to corrosion in marine environments.
Circuit Protection
Every circuit must be protected against overload and short circuit.
Common protection devices:
- Fuses
- Circuit breakers
- Main battery isolators
Protection should be located as close as possible to the power source to minimise risk.
Battery Bank Configuration
Separating engine start and domestic systems improves reliability.
- Start battery: dedicated to engine
- Domestic bank: supplies onboard systems
This prevents auxiliary loads from compromising engine starting capability.
Earthing and Bonding
Proper earthing is essential for safety and system stability.
- Negative return systems are standard in DC installations
- Bonding reduces corrosion risk and electrical faults
Incorrect earthing can lead to stray currents and long-term damage.
Installation Practices
Good installation is as important as good design.
- Secure cables at regular intervals
- Avoid sharp bends and abrasion points
- Use proper crimped connections
Temporary or poorly executed connections are a common source of faults.
Common Mistakes
- Undersized wiring leading to voltage drop
- Inadequate circuit protection
- Poor routing near heat or moisture sources
- Lack of system documentation
These issues often become apparent only after installation, when correction is more difficult.
Practical Observations
In real-world builds, electrical systems often evolve over time. Designing with future expansion in mind reduces the need for rework.
Allowing spare capacity in distribution panels and routing pathways simplifies later upgrades.
Conclusion
Marine electrical system design is a foundational aspect of boat building that requires careful planning and disciplined execution. A well-designed 12V system provides reliable power, simplifies maintenance, and enhances overall vessel usability.
By focusing on load assessment, cable sizing, and structured layout, builders can avoid common pitfalls and create systems that perform consistently in demanding marine conditions.
